Fleet Compliance at Scale: Embedding GitHub Copilot SDK as an Autonomous Agent Brain

Introduction: From Interactive Assistant to Peer Programmer to Enterprise Orchestrator

GitHub Copilot has evolved rapidly. Developers know it as an interactive coding companion in the IDE — you type a question, it responds. Then came the CLI and Agent Mode for multi-step tasks. More recently, GitHub’s coding agent on GitHub.com can be assigned an Issue or asked to review a Pull Request just like a team member — a genuine peer programmer operating within the development platform.

But all of these operate primarily within the GitHub ecosystem and, for the most part, with a human guiding the conversation. What happens when the workflow needs to reach beyond GitHub — into organizational knowledge bases, change management systems, security scanners, and other enterprise backends?

That’s where the GitHub Copilot SDK opens a fundamentally different door. It lets you embed Copilot’s AI reasoning into your own agents — agents that don’t just work with code and repositories, but orchestrate across enterprise systems through RAG and MCP Servers, making context-aware decisions grounded in organizational policy.

The Fleet Compliance Agent demonstrates exactly this pattern. It’s a Python-based compliance agent that uses the GitHub Copilot SDK to automatically enforce organizational policies across a fleet of microservices — retrieving policies from a knowledge base, calling external services for security scanning and change management, applying patches, running tests, and creating evidence-backed Pull Requests — all autonomously.

The Key Insight: The peer programmer model on GitHub.com is compelling for tasks that live naturally within GitHub. But when the workflow requires pulling context from knowledge bases (RAG), calling specialized backend services (MCP Servers), and routing decisions based on business criticality — you need to embed the Copilot SDK into a custom agent that bridges these worlds. Code drives the conversation — sending structured prompts, registering custom tools, and letting the SDK autonomously decide the execution path across systems that span far beyond GitHub.

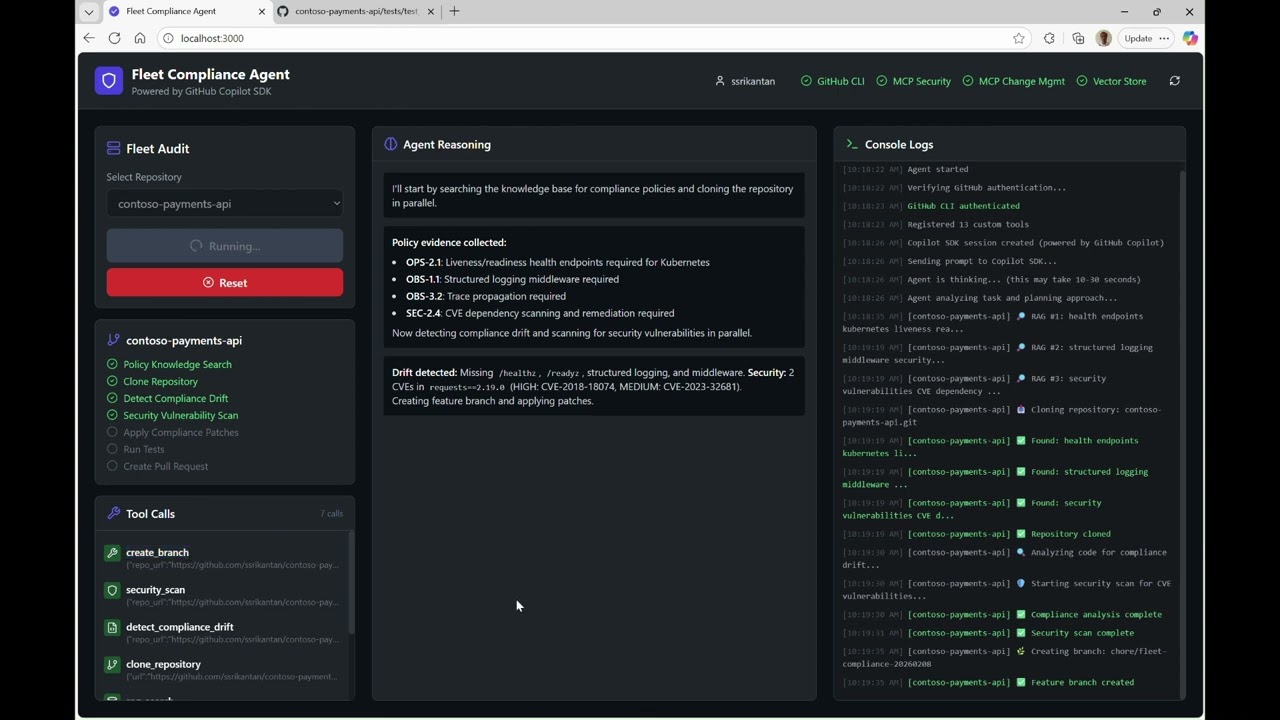

🎥 Video Demo

Click the image above to watch the Fleet Compliance Agent in action

Why GitHub Copilot SDK?

So how does the SDK actually make this possible? By exposing the Copilot CLI through a Python SDK, it gives you a programmable agent brain — the same reasoning capability, but invoked by code rather than a person. You register custom tools, send a natural-language prompt, and the SDK autonomously decides the execution path. The key difference: those custom tools can reach into any backend your organization runs in production — knowledge bases, change management platforms, security scanners, service registries — not just code and repositories.

How It Works

The Python SDK spawns the Copilot CLI in server mode and communicates via JSON-RPC. Your code registers tools, sends prompts, and receives events — while the CLI handles authentication, model communication, and token management.

Your Application
       ↓
   SDK Client
       ↓ JSON-RPC
Copilot CLI (server mode)
       ↓
  GitHub Copilot API

# The SDK starts the CLI in server mode and manages the session
client = CopilotClient()
await client.start()  # Spawns copilot CLI as background process

session = await client.create_session({
    "system_message": {"content": SYSTEM_PROMPT},
    "tools": [clone_tool, detect_drift_tool, apply_patches_tool, ...],
})
await session.send({"prompt": "Enforce compliance on contoso-payments-api"})
# SDK autonomously calls tools, reasons over results, and completes the workflow

The Agent Spectrum: Developers use GitHub Copilot interactively in the IDE and CLI. On GitHub.com, the coding agent acts as a peer programmer — assigned Issues, reviewing PRs — operating within the platform. In this sample, we take a further step: we embed the GitHub Copilot SDK directly into an autonomous agent whose reach extends beyond GitHub into enterprise backends via RAG and MCP Servers. The SDK becomes the reasoning engine for a workflow that orchestrates across organizational knowledge bases, change management systems, security scanners, and code repositories — a scope that goes well beyond what interactive or platform-native agents can address.

Preview SDK Notice: The GitHub Copilot SDK is currently in preview. This demo uses version github-copilot-sdk>=0.1.21.

What This Demo Implements

The demo implements automated fleet-wide compliance enforcement — an AI agent that audits multiple microservices, detects policy violations, applies fixes, and creates Pull Requests with evidence.

Production vs. Demo Mode: In a production scenario, this agent would run headlessly — processing repositories one after another without any user interface, triggered by a schedule or event. This sample includes a React-based GUI to help visualize how embedding the GitHub Copilot SDK as an autonomous agent works. Note that human-in-the-loop is still required when reviewing and approving the Pull Requests — the automation proposes, humans approve.

SDK & AI Capabilities

Capability	How It’s Used	Implementation
SDK as Orchestrating Agent	Copilot SDK is the “brain” that drives the entire compliance workflow end-to-end	SDK receives a single prompt, then autonomously executes all steps
Autonomous Tool Calling	SDK decides which tools to invoke based on the task	13 custom tools registered with the SDK
Function Calling	Tools return structured JSON that the SDK reasons over	Each tool returns `ToolResult` with JSON payload
MCP Server Integration	External services for approvals and security scans	Change Mgmt (port 4101), Security (port 4102)
RAG (Retrieval-Augmented Generation)	Policy evidence grounded in organizational knowledge	Azure OpenAI Vector Store with Responses API
Multi-Step Reasoning	SDK chains tools: clone → analyze → patch → test → PR	Event-driven workflow with state tracking
Real-Time Event Streaming	Live UI updates as agent executes	WebSocket events via `asyncio.run_coroutine_threadsafe`

Compliance Features Demonstrated

Feature	Description	Policy Reference
Fleet-Wide Enforcement	Automate compliance across multiple repos	-
Health Endpoint Detection	Identify missing `/healthz` and `/readyz` endpoints	OPS-2.1
Structured Logging	Detect and add structlog configuration	OBS-1.1
Trace Propagation	Add middleware for W3C traceparent correlation	OBS-3.2
Security Vulnerability Scanning	Scan dependencies for CVEs via MCP server	SEC-2.4
Risk-Aware Approvals	Route PRs to appropriate approvers based on service tier	CM-7
Evidence-Backed PRs	Include policy citations in PR descriptions	REL-1.0

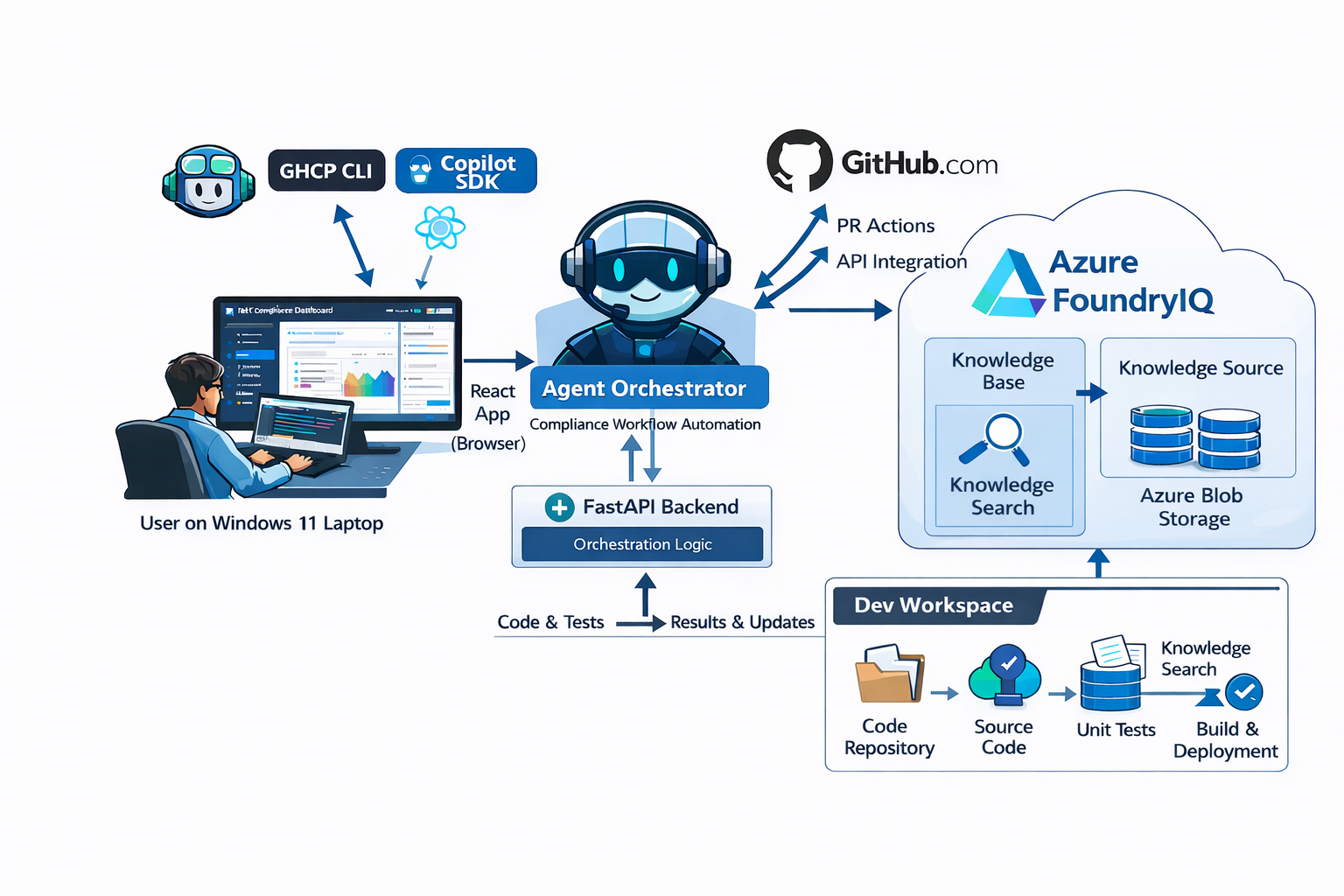

Architecture

The solution follows a layered architecture with the Copilot SDK at its core, surrounded by custom tools, MCP servers, and a real-time UI layer.

Solution Architecture

┌──────────────────────────────────────────────────────────────────────────────┐
│                         FLEET COMPLIANCE AGENT                               │
├──────────────────────────────────────────────────────────────────────────────┤
│  ┌──────────────────────────────────────────────────────────────────────┐    │
│  │              🖥️ Visual UI (React + FastAPI)                          │    │
│  │  ┌─────────────────┐    WebSocket    ┌─────────────────┐             │    │
│  │  │  React Frontend │◄───────────────►│ FastAPI Backend │             │    │
│  │  │  localhost:3000  │   (streaming)   │  localhost:8000  │             │    │
│  │  └─────────────────┘                 └────────┬────────┘             │    │
│  └───────────────────────────────────────────────┼──────────────────────┘    │
│                                                  │ imports                   │
│                                                  ▼                           │
│  ┌────────────────────────────────────────────────────────────────────────┐  │
│  │              🧠 Agent Core (agent_loop.py)                             │  │
│  │  ┌─────────────┐    ┌─────────────┐    ┌─────────────┐                 │  │
│  │  │   GitHub    │    │  Knowledge  │    │   Copilot   │                 │  │
│  │  │   Repos     │    │    Base     │    │    SDK      │                 │  │
│  │  │  (Target)   │    │   (RAG)     │    │ (Agent Brain)│                │  │
│  │  └──────┬──────┘    └──────┬──────┘    └──────┬──────┘                 │  │
│  │         │                  │                  │                        │  │
│  │         ▼                  ▼                  ▼                        │  │
│  │  ┌─────────────────────────────────────────────────────────────┐       │  │
│  │  │          13 CUSTOM TOOLS (Registered with SDK)              │       │  │
│  │  │  rag_search → clone → detect_drift → security_scan →        │       │  │
│  │  │  create_branch → apply_patches → get_approvals →            │       │  │
│  │  │  run_tests → read_file → fix_code → commit → push → PR      │       │  │
│  │  └───────────────────────────┬─────────────────────────────────┘       │  │
│  └──────────────────────────────┼─────────────────────────────────────────┘  │
│                                 │                                            │
│         ┌───────────────────────┼────────────────────┐                       │
│         ▼                       ▼                    ▼                       │
│  ┌─────────────┐          ┌─────────────┐      ┌─────────────┐               │
│  │ Change Mgmt │          │  Security   │      │   GitHub    │               │
│  │ MCP Server  │          │ MCP Server  │      │     CLI     │               │
│  │ (Approvals) │          │   (Scans)   │      │   (PRs)     │               │
│  └─────────────┘          └─────────────┘      └─────────────┘               │
│     :4101                    :4102                 gh                        │
└──────────────────────────────────────────────────────────────────────────────┘

Components

Component	Purpose	Location
React Frontend	Visual dashboard with real-time streaming, per-repo checklists	`ui/frontend/`
FastAPI Backend	WebSocket server for event streaming	`ui/backend/`
Agent Core	Orchestrates compliance workflow via Copilot SDK	`agent/fleet_agent/agent_loop.py`
Knowledge Base	Markdown policy documents for RAG	`knowledge/*.md`
Change Mgmt MCP	Evaluates approval requirements per CM-7 matrix	`mcp/change_mgmt/`
Security MCP	Scans dependencies for CVE vulnerabilities	`mcp/security/`
GitHub CLI	Clones repos, creates branches, opens PRs	System tool (`gh`)

A Key Architectural Distinction

An important distinction in this architecture is the separation of concerns between the two AI services:

GitHub Copilot SDK = Agent Brain (LLM reasoning, tool orchestration, autonomous decision-making)
Azure OpenAI = Vector Store Only (RAG search via Responses API with file_search — no LLM reasoning)

The Copilot SDK handles all the reasoning and tool orchestration, while Azure OpenAI serves purely as the knowledge retrieval layer for policy documents.

How the Agent Works

The agent executes a compliance workflow in three phases:

Phase 1: Discovery & Analysis (BEFORE any code changes)

Step	Tool	What Happens
1	`rag_search`	Search knowledge base for policy requirements
2	`clone_repository`	Clone the target repo to local workspace
3	`detect_compliance_drift`	Scan original code for missing endpoints, logging, middleware
4	`security_scan`	Scan original `requirements.txt` for CVE vulnerabilities

Phase 2: Code Modification (MAKING changes)

Step	Tool	What Happens
5	`create_branch`	Create feature branch `chore/fleet-compliance-{timestamp}`
6	`apply_compliance_patches`	Create/modify files: `middleware.py`, `logging_config.py`, `main.py`, `requirements.txt`, `tests/test_health.py`

Phase 3: Validation & Approval (AFTER code changes)

Step	Tool	What Happens
7	`get_required_approvals`	Send modified file list to Change Mgmt MCP to determine approvers
8	`run_tests`	Run pytest on modified code
8a	`read_file` + `fix_code`	(If tests fail) Read failing file, use SDK to generate fix, retry up to 3 times
9	`commit_changes`	Commit all modifications
10	`push_branch`	Push branch to GitHub
11	`create_pull_request`	Open PR with policy evidence, vulnerability report, approval labels

Visual Timeline

ORIGINAL CODE                              MODIFIED CODE
     │                                          │
     ▼                                          ▼
┌──────────────────────────────────────────────────────────────────────────┐
│  clone → detect_drift → security_scan    │   apply_patches → run_tests   │
│         (analyze original)               │   → fix_code (if needed)      │
│                                          │   (modify & validate)         │
│  ◄────── BEFORE changes ──────►          │  ◄────── AFTER changes ─────► │
└──────────────────────────────────────────────────────────────────────────┘
                                       ▲
                                 Branch created here

Deep Dive: Tool Registration & Agentic Loop

The core of the agent is in agent_loop.py, where 13 custom tools are registered with the Copilot SDK. The SDK then autonomously decides which tools to call and in what order.

Tool Registration

from copilot import CopilotClient
from copilot.types import Tool, ToolResult

# Create tool with handler and JSON Schema parameters
rag_search_tool = Tool(
    name="rag_search",
    description="Search the knowledge base for compliance policy documents.",
    handler=rag_search_handler,  # Function that returns ToolResult
    parameters={
        "type": "object",
        "properties": {
            "query": {"type": "string", "description": "Search query"}
        },
        "required": ["query"]
    }
)

# Session with ONLY custom tools (available_tools whitelist)
session = await client.create_session({
    "model": "gpt-4o",
    "system_message": {"content": SYSTEM_PROMPT},
    "tools": [rag_search_tool, clone_tool, ..., read_file_tool, fix_code_tool],
    "available_tools": ["rag_search", "clone_repository", ..., "read_file", "fix_code"]
})

Key Pattern: The available_tools whitelist ensures the SDK only uses custom tools, not built-in ones — giving you full control over the agent’s capabilities.

Event-Driven Streaming

The agent uses event callbacks to stream tool results and reasoning to the UI in real-time:

def on_event(event):
    event_type = event.type.value

    if event_type == "tool.execution_start":
        tool_name = event.data.tool_name
        args = event.data.arguments
        # Emit to UI via WebSocket

    elif event_type == "tool.execution_complete":
        # Tool finished, SDK will reason about result

    elif event_type == "assistant.message":
        # Agent reasoning/message - extract PR URLs

    elif event_type == "session.idle":
        done.set()  # Agent completed task

This event-driven approach ensures the UI stays responsive and provides real-time visibility into what the agent is doing, which tools it’s calling, and what decisions it’s making.

MCP Server Integration

The agent integrates two MCP (Model Context Protocol) servers for domain-specific operations that go beyond simple code analysis:

Change Management Server (Port 4101)

Evaluates which approvals are needed based on the repository’s service tier and which files were modified:

curl -X POST http://localhost:4101/approval \
  -H "Content-Type: application/json" \
  -d '{"service": "contoso-payments-api", "touched_paths": ["app/auth.py"]}'

# Response: {"required_approvals": ["SRE-Prod", "Security"], "risk_level": "high"}

Security Scanner Server (Port 4102)

Scans dependency files for known CVE vulnerabilities:

curl -X POST http://localhost:4102/scan \
  -H "Content-Type: application/json" \
  -d '{"requirements": "requests==2.19.0"}'

# Response: {"findings": [{"name": "requests", "cve": "CVE-2018-18074", "severity": "HIGH"}]}

These MCP servers demonstrate how agents can leverage external, domain-specific services to make better decisions — the Change Management server determines that contoso-payments-api is a high-impact service requiring SRE-Prod approval, while the Security server identifies specific CVEs in outdated dependencies.

RAG: Policy-Grounded Evidence

The agent doesn’t just apply arbitrary fixes — it grounds every action in organizational policy documents. Using Azure OpenAI’s native Vector Store with the Responses API, the agent retrieves relevant policy context before making any changes.

Knowledge Base Structure

The knowledge base consists of markdown policy documents following standardized naming conventions:

Prefix	Category	Inspired By
CM	Configuration Management	NIST 800-53
OBS	Observability	SRE/DevOps practices
OPS	Operations	SRE/Platform operations
REL	Reliability	Google SRE, AWS Well-Architected
SEC	Security	NIST, SOC 2, CIS Controls

For example, OPS-2.1-health-readiness.md defines that all HTTP services deployed on Kubernetes must expose /healthz and /readyz endpoints. When the agent detects a missing health endpoint, it cites this policy document in the resulting Pull Request.

How RAG Powers PR Descriptions

The create_pull_request tool sends the policy evidence along with the change summary to the Copilot SDK, which generates a professional PR description that includes:

Summary — Brief overview of changes
Changes — Bullet list of specific modifications
Policy Compliance — How changes address fleet policies (with citations)
Risk Assessment — Deployment considerations
Testing — Verification steps performed

This produces PR descriptions that are not just technically accurate but auditable — reviewers can trace every change back to a specific organizational policy.

Sample Target Repositories

The demo includes three intentionally non-compliant FastAPI services:

Repository	Description	Compliance Gaps
contoso-orders-api	Order management	Missing health endpoints, no structlog, no middleware
contoso-payments-api	Payment processing (high-impact)	Same as above + vulnerable `requests==2.19.0`
contoso-catalog-api	Product catalog	Missing health endpoints, no structlog, no middleware

The payments service triggers CM-7.2 (high-impact service), requiring SRE-Prod approval — demonstrating how the agent adapts its behavior based on service criticality.

The Visual UI

While the agent can run headlessly in production, the sample includes a React-based GUI with a three-panel layout for visualization:

Panel	Description
Left	Repo selector, run button, checklist, tool call history
Center	Agent reasoning/messages (supports markdown)
Right	Real-time timestamped console logs

Real-Time WebSocket Events

Event	Description
`agent_start`	Agent execution begins
`tool_call_start` / `tool_call_complete`	Tool invocation tracking
`agent_message`	Agent reasoning (markdown supported)
`checklist_update`	Per-repo step completion
`pr_created`	PR URL captured
`console_log`	Streaming log with level (info/success/warning/error)

The UI provides real-time visibility into the agent’s reasoning process — you can watch it decide to clone a repository, detect missing health endpoints, apply patches, encounter a test failure, read the failing file, generate a fix, and finally create a Pull Request — all autonomously.

From POC to Production

This demo implements a pattern applicable to enterprise environments. The “automation proposes, human approves” approach is an established GitOps pattern — widely used by tools like Dependabot, Renovate, and GitHub Advanced Security.

Pattern/Tool	Description
Backstage	Developer portal with automation plugins
Dependabot / Renovate	Automated dependency PRs
GitHub Advanced Security	Automated security remediation
Policy-as-Code (OPA, Kyverno)	Declarative policy enforcement

The Fleet Compliance Agent goes further by combining AI reasoning (via Copilot SDK) with policy retrieval (via RAG) and external service integration (via MCP) — creating an agent whose world isn’t limited to code and repositories. It reaches into enterprise systems for change management, security scanning, and policy grounding, producing a more intelligent, context-aware automation pipeline than any single-platform tool can achieve.

Current Limitations

Single-user, single-machine execution
No persistent state between runs
No authentication/authorization
No job queuing or scheduling

These are expected for a demonstration — production deployments would add proper job orchestration, persistent state management, and multi-tenancy.

Project Structure

ghcp-cli-sdk-sample1/
├── agent/                      # Fleet compliance agent
│   ├── config/repos.json       # Target repositories
│   ├── fleet_agent/
│   │   ├── agent_loop.py       # Main agentic entry point (SDK-driven)
│   │   ├── github_ops.py       # Git/GitHub operations
│   │   ├── mcp_clients.py      # MCP server clients
│   │   ├── patcher_fastapi.py  # Code patching logic
│   │   └── rag.py              # Knowledge base search (Azure OpenAI)
│   ├── test_sdk_response.py    # SDK response parsing tests
│   ├── requirements.txt
│   └── .env.example
│
├── knowledge/                  # Policy documents (RAG source)
│   ├── CM-7-approval-matrix.md
│   ├── OBS-1.1-structured-logging.md
│   ├── OBS-3.2-trace-propagation.md
│   ├── OPS-2.1-health-readiness.md
│   ├── REL-1.0-pr-gates.md
│   └── SEC-2.4-dependency-vulnerability-response.md
│
├── mcp/                        # MCP servers
│   ├── change_mgmt/server.py   # Approval matrix evaluation
│   └── security/server.py      # Vulnerability scanning
│
├── sample-repos/               # Demo target repos
│   ├── contoso-catalog-api/
│   ├── contoso-orders-api/
│   └── contoso-payments-api/
│
├── scripts/
│   ├── deploy-vector-store.py  # Deploy Azure OpenAI vector store
│   └── push-sample-repos.ps1   # Push samples to GitHub
│
├── ui/
│   ├── frontend/               # React app (Vite + Tailwind)
│   └── backend/main.py         # FastAPI WebSocket server
│
├── docs/ARCHITECTURE_FLOW.md
├── DEMO_CHECKLIST.md
└── README.md

Getting Started

Prerequisites

Requirement	Purpose	Verification
Python 3.11+	Agent and MCP server runtime	`python --version`
Node.js 18+	Frontend and Copilot CLI	`node --version`
Git	Repository operations	`git --version`
GitHub CLI	PR creation, repo management	`gh --version`
Azure CLI	Azure authentication for RAG	`az --version`
GitHub Copilot License	Required for Copilot SDK	Check GitHub account
GitHub Copilot CLI	SDK dependency	`npm list -g @anthropic-ai/copilot`

Quick Start

Clone the repository:

git clone https://github.com/MSFT-Innovation-Hub-India/GHCP-CLI-SDK-PR-AUTOMATION.git
cd ghcp-cli-sdk-sample1

Set up target repositories — push the sample repos from sample-repos/ to your GitHub account
Authenticate:
```
az login
gh auth login
```
Configure environment — copy agent/.env.example to agent/.env and set your Azure OpenAI endpoint, deployment name, and Copilot CLI path
Create virtual environments and install dependencies for the agent and both MCP servers

Deploy the Vector Store:

cd agent
.venv\Scripts\Activate.ps1
python ..\scripts\deploy-vector-store.py

Run the demo — start the MCP servers, backend, and frontend in four separate terminals

For detailed setup instructions, refer to the repository README.

Conclusion

GitHub Copilot’s evolution from interactive assistant to peer programmer to embeddable agent brain represents a fundamental expansion of what AI can do for engineering organizations. The peer programmer on GitHub.com is a powerful collaborator within the development platform. But when you need an agent that reaches beyond GitHub — pulling from knowledge bases, calling enterprise backend services, making risk-aware decisions based on business context — the Copilot SDK lets you build exactly that.

The Fleet Compliance Agent demonstrates this pattern concretely: embedding AI as an autonomous reasoning engine inside enterprise workflows that span multiple systems. By using the GitHub Copilot SDK as the “brain” — combined with custom tools, MCP servers for domain-specific operations, and RAG for policy-grounded evidence — it creates an intelligent automation pipeline whose world extends far beyond code and repositories.

The key takeaways:

GitHub Copilot SDK enables programmatic access to Copilot’s reasoning capabilities — extending the agent’s world from the GitHub platform into enterprise systems
Custom tools give the SDK hands to act — from cloning repos to creating PRs, the agent can interact with real systems
MCP servers connect the agent to domain-specific enterprise services — change management, security scanning, approval workflows — that live outside GitHub
RAG with Azure OpenAI grounds every action in organizational policy, producing auditable, evidence-backed Pull Requests
Human-in-the-loop remains essential — the agent proposes, humans approve, maintaining the safety and governance that enterprise environments demand

This is a glimpse into the future of enterprise DevOps: AI agents that understand policy, reason about code, orchestrate across enterprise systems, and automate the tedious toil — while keeping humans firmly in the decision loop.

Resources

GitHub Repository: GHCP-CLI-SDK-PR-AUTOMATION
GitHub Copilot SDK (Python): github/copilot-sdk
GitHub Copilot CLI Documentation: Copilot in the CLI
MCP Specification: Model Context Protocol
Azure OpenAI Responses API: Azure OpenAI Docs

This article was developed with extensive use of GitHub Copilot Agent Mode in VS Code, demonstrating the power of AI-assisted development for building and documenting AI agents.
